To simulate payment with eWallet in Test Mode, first you must be aware that eWallet has 2 type of flow (for further reference can go to this docs):
1. No Redirection Payment Flow/ Push Notification Flow:

- OVO

- JeniusPay

2. Redirection Payment Flow:

- DANA

- ShopeePay (ID & PH)

- LinkAja

- AstraPay

- GCash

- Paymaya

- GrabPay

Here are the steps on how to create eWallet charge and simulate payment in test mode:

1. Create secret API Key on your dashboard in test mode
Reference can be found in this doc.

2. Set your test callback URL in Dashboard - Settings - Callbacks in eWallet payment status and make sure upon "test and save" it returns 2XX

3. Create eWallet Charge using endpoint:

POST https://api.xendit.co/ewallets/charges

4. Input you secret API key in Authorization

5. In Body Request you can input the parameters which are required or optional based on each eWallet partners (this example is for DANA):

{
"reference_id": "test123",
"currency": "IDR",
"amount": 1000,
"checkout_method": "ONE_TIME_PAYMENT",
"channel_code": "ID_DANA",
"channel_properties": {
"success_redirect_url": "https://yourwebsiteurl/",
"failure_redirect_url": "https://yourwebsiteurl/"
 },
"metadata": {
"branch_area": "PLUIT",
"branch_city": "JAKARTA"
 }
}

6. You will get this response afterwards:

{
"id": "ewc_57395955-790c-46c2-8f84-0a16673b6e91",
"business_id": "6253abec9547485c4a83xxx",
"reference_id": "test123",
"status": "PENDING",
"currency": "IDR",
"charge_amount": 1000,
"capture_amount": 1000,
"payer_charged_currency": null,
"payer_charged_amount": null,
"refunded_amount": null,
"checkout_method": "ONE_TIME_PAYMENT",
"channel_code": "ID_DANA",
"channel_properties": {
"success_redirect_url": "https://yourwebsiteurl/",
"failure_redirect_url": "https://yourwebsiteurl/"
 },
"actions": {
"desktop_web_checkout_url": "https://ewallet-mock-connector.xendit.co/v1/ewallet_connector/checkouts?token=ce838ropvgtcs06rtg9g",
"mobile_web_checkout_url": "https://ewallet-mock-connector.xendit.co/v1/ewallet_connector/checkouts?token=ce838ropvgtcs06rtg9g",
"mobile_deeplink_checkout_url": null,
"qr_checkout_string": null
 },
"is_redirect_required": true,
"callback_url": "https://hooks.zapier.com/hooks/catch/9675406x/oj8regt/",
"created": "2022-12-07T06:36:31.131839Z",
"updated": "2022-12-07T06:36:31.131839Z",
"void_status": null,
"voided_at": null,
"capture_now": true,
"customer_id": null,
"customer": null,
"payment_method_id": null,
"failure_code": null,
"basket": null,
"metadata": {
"branch_area": "PLUIT",
"branch_city": "JAKARTA"
 },
"shipping_information": null
}

NOTE:
- For Redirection Payment Flow you will receive "desktop_web_checkout_url" and/or "mobile_web_checkout_url" under the "actions" section (check step 7) while for

- No Redirection Payment Flow there will be no "actions" section and upon charge creation successful for OVO and JeniusPay = it is automatically paid which you can check directly in Transactions/eWallet Tab on Dashboard.

7. For redirection payment flow you will need to go to the url under the "actions" section either desktop or mobile and click "proceed to pay":

8. You will then be redirected to the "success_redirect_url" you have set previously and transaction will show up in Transactions/eWallet Tab.

And the simulation in test mode for eWallet is done! For API reference please click this link and while for test scenarios to get certain status please click this link.

Below is the video example for:

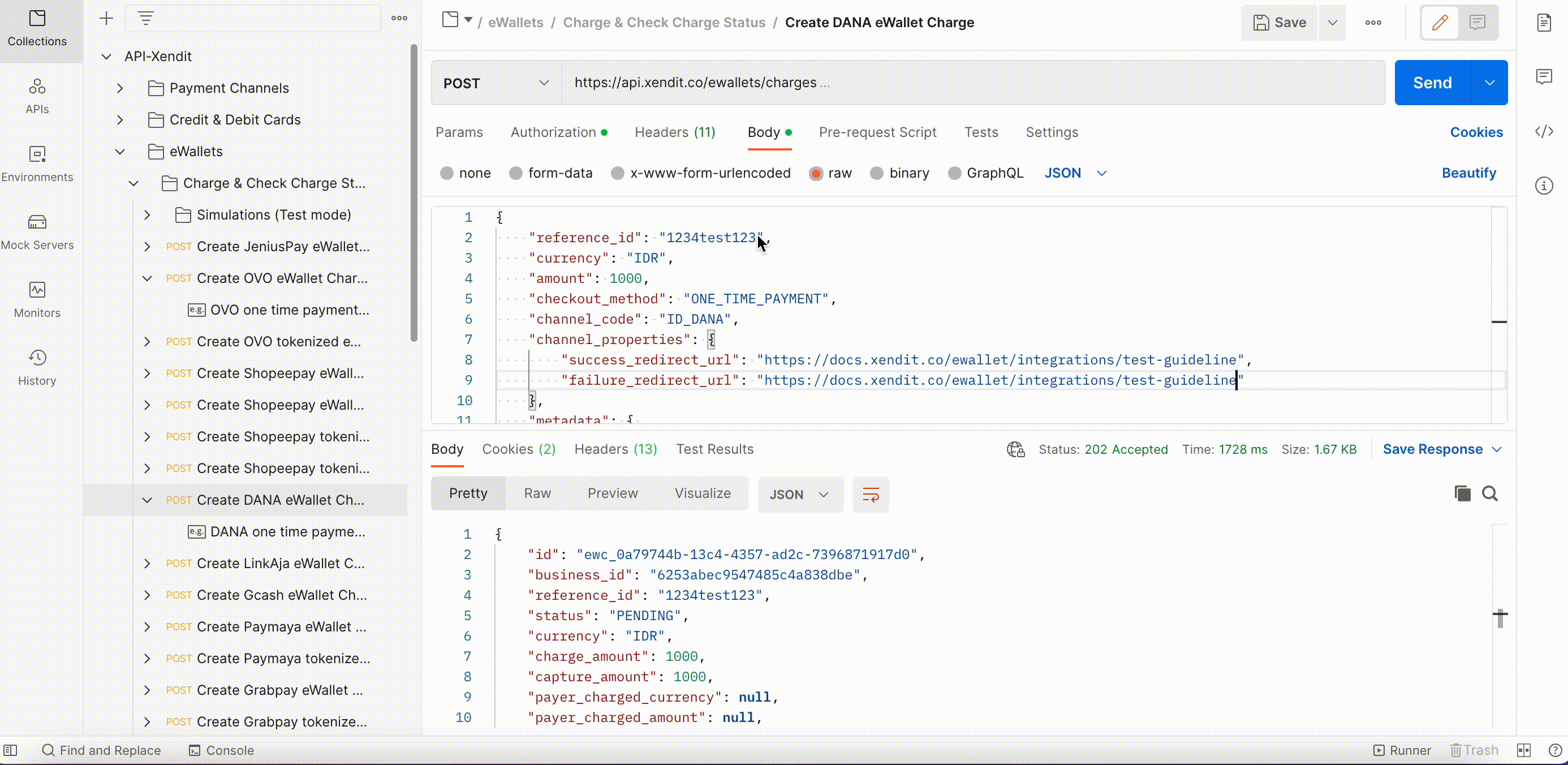

1. Redirection Flow:

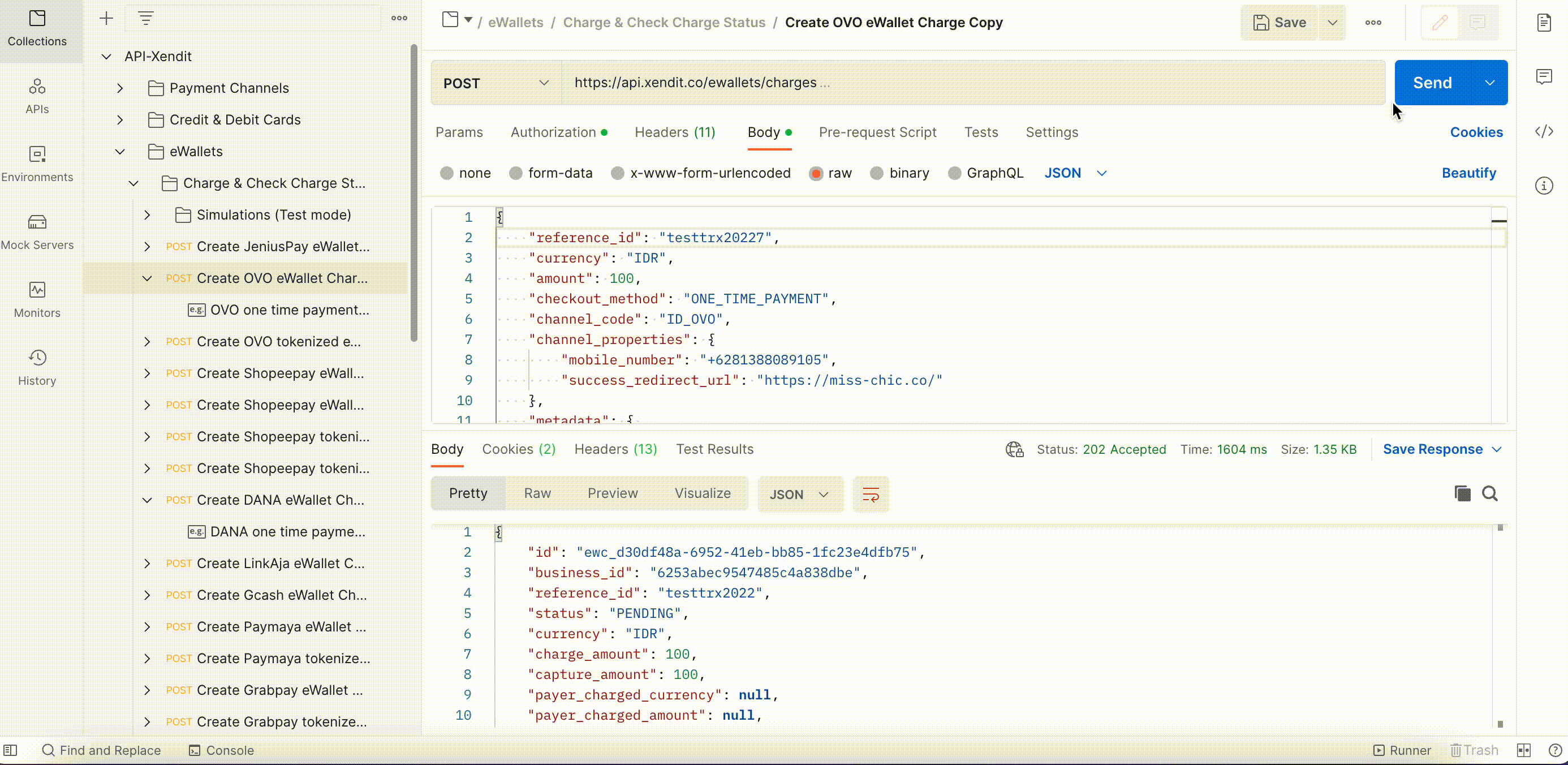

2. No Redirection Flow:
