How to create QR Code with API in live mode? – Xendit Guide

Firstly, you have to ensure that you already activated QR Code on Configuration Tab > Payment Methods > QR Codes.

You can check QR Code Activation here:How to Activate QR Code as Payment Method

Below are the steps on how to create QR Code via API in live mode:

1. Create secret API Key on your dashboard in live mode

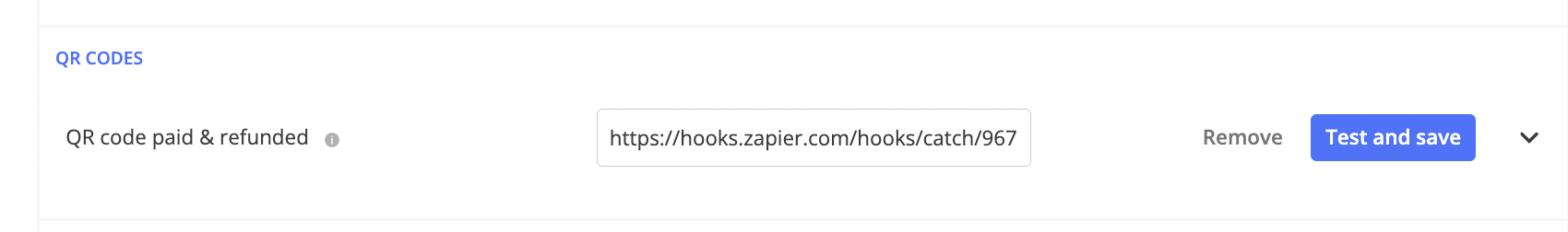

2. Set your callback URL in Dashboard - Settings - Callbacks in QR code paid & refunded and make sure upon "test and save" it returns 2XX

3. Create QR Code API using endpoint:

POST https://api.xendit.co/qr_codes

4. Input you secret API key in Authorization

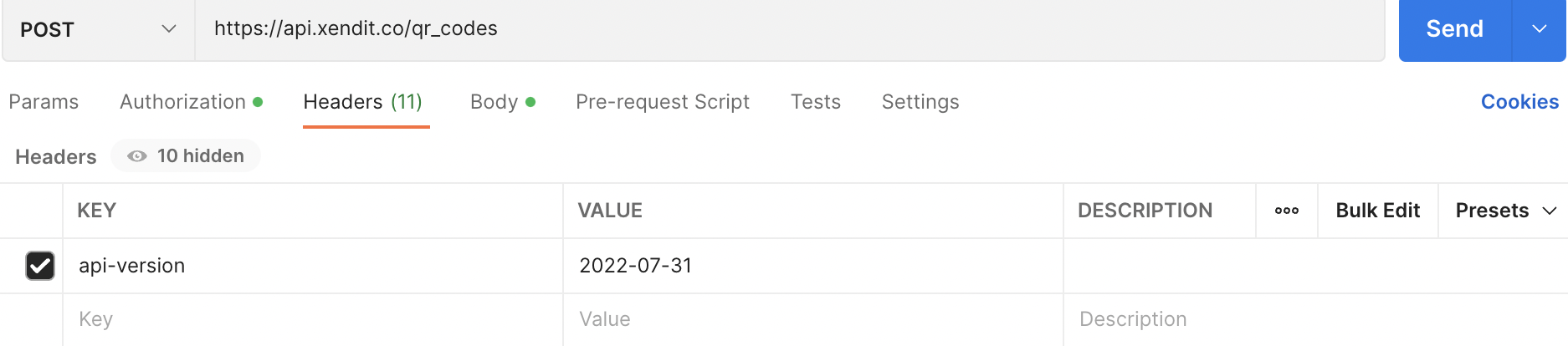

5. In Headers please input below on this section:
KEY: api-version

VALUE:2022-07-31

6. In Body request, you can use these parameters as sample (these are the required parameter):

{
"reference_id": "testing_id123400",
"type": "DYNAMIC",
"currency": "IDR",
"amount": 1000
}

If you are creating STATIC QR, please change the "type" to STATIC and delete parameter "amount" since static QR is open amount.

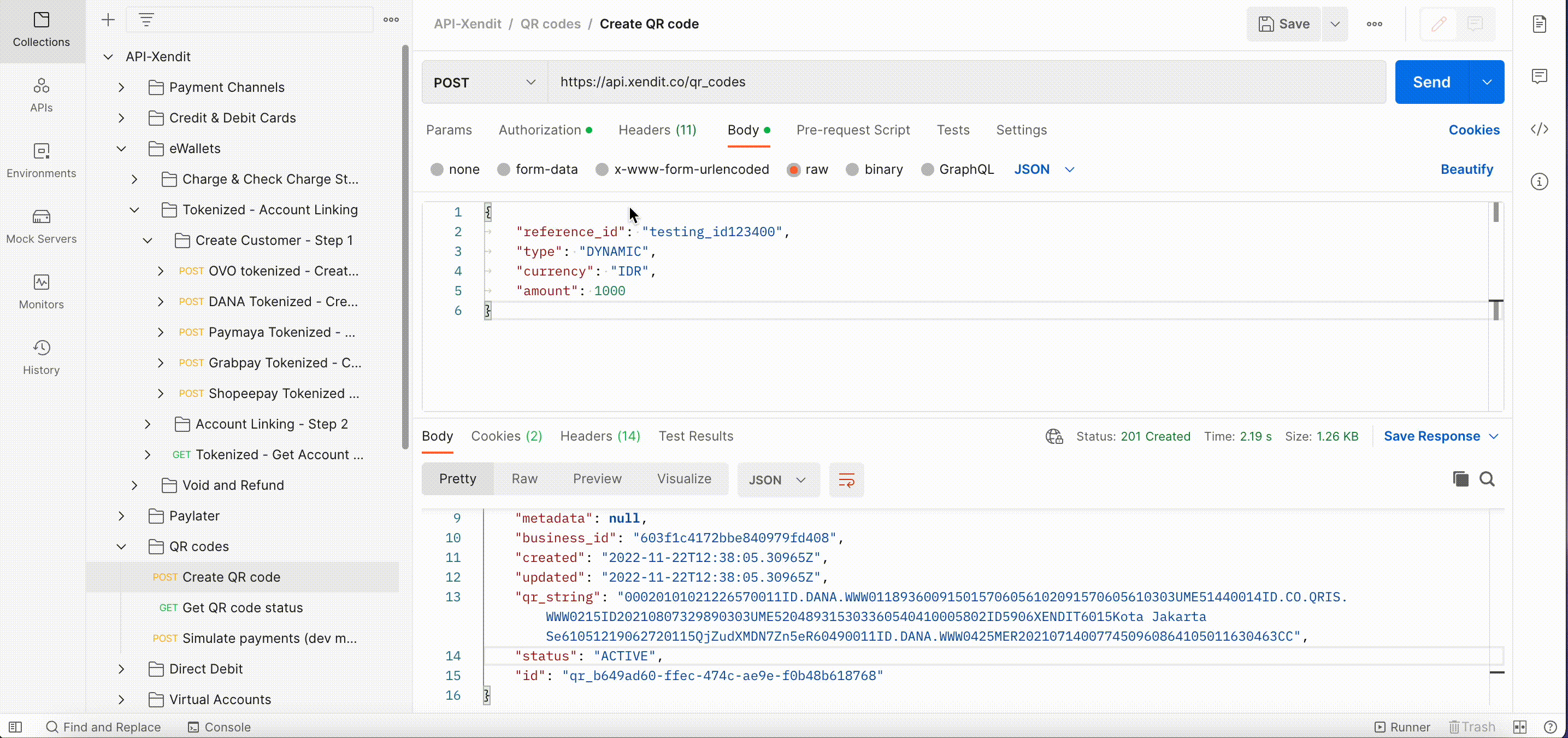

7. Click send and afterwards you will get this response and the transaction will pop up in Transaction Tab:

{
"reference_id": "testing_id123400",
"type": "DYNAMIC",
"currency": "IDR",
"channel_code": "ID_DANA",
"amount": 1000,
"expires_at": "2022-11-24T12:38:05.027203Z",
"description": "",
"metadata": null,
"business_id": "603f1c4172bbe840979fd408",
"created": "2022-11-22T12:38:05.30965Z",
"updated": "2022-11-22T12:38:05.30965Z",
"qr_string": "00020101021226570011ID.DANA.WWW011893600915015706056102091570605610303UME51440014ID.CO.QRIS.WWW0215ID20210807329890303UME520489315303360540410005802ID5906XENDIT6015Kota Jakarta Se61051219062720115QjZudXMDN7Zn5eR60490011ID.DANA.WWW0425MER202107140077450960864105011630463CC",
"status": "ACTIVE",
"id": "qr_b649ad60-ffec-474c-ae9e-f0b48b618768"
}

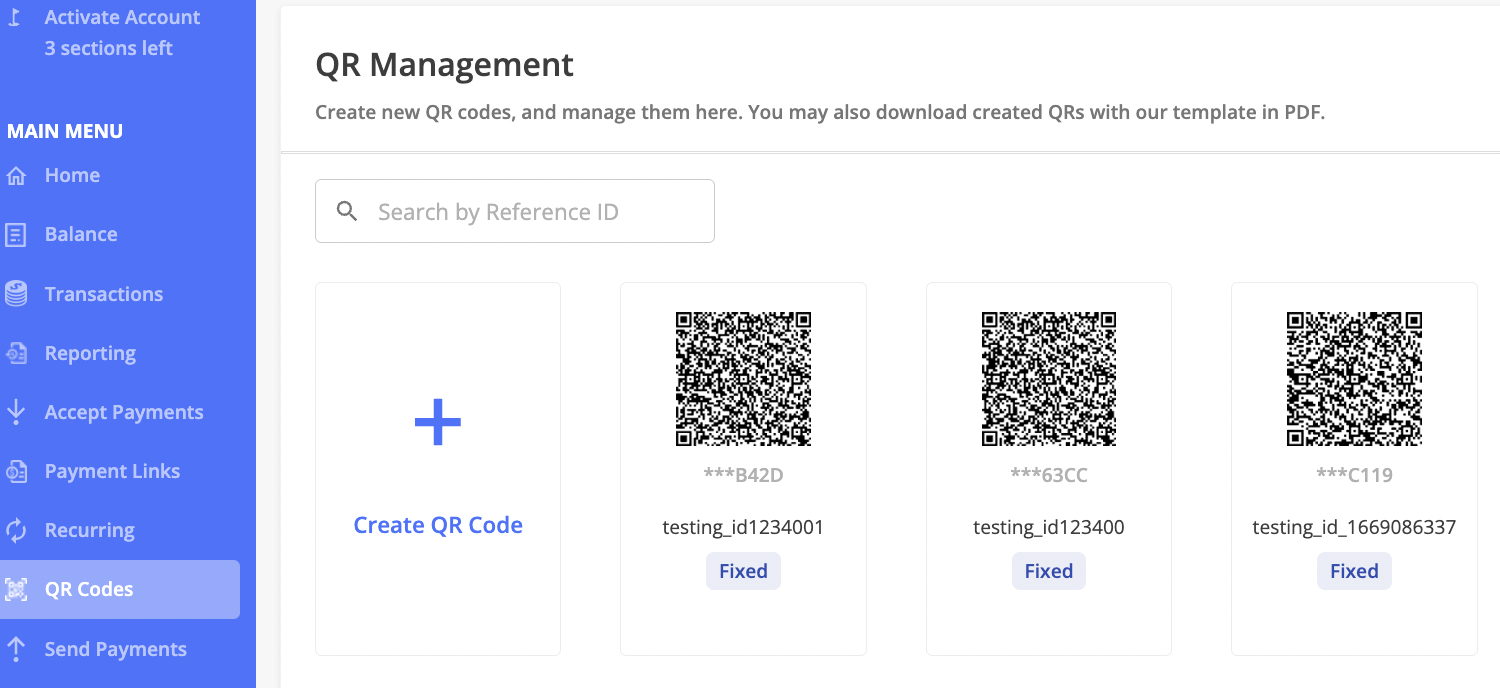

And it is done! You can also get your QR Code from Dashboard - QR Code Tab to download it:

For API reference please click here

For video of the QR Code creation steps above in live mode (via Postman), check the video below:
